Vertical Cable Balustrades, Bendigo VIC
Over 1,000 vertical stainless steel balustrade cables installed at Bendigo TAFE, combining precision engineering with architectural detail.
Vertical Cable Balustrades, Bendigo VIC
Bespoke Wire & Rope partnered with Kane Nicholson JV and Architectus to deliver custom vertical cable balustrades for Bendigo TAFE’s City Campus redevelopment. The project involved manufacturing and installing more than 1,000 cables, requiring close collaboration with engineers, architects, and builders to achieve a unique tensioned system.
Location: Hargreaves St, Bendigo VIC
Completion Date: July 2021
Client: Bendigo Kangan Institute
Builder: Kane Nicholson JV
Architect: Architectus
Our Scope
Bespoke supplied and installed over 1,000 vertical balustrade cables as part of Bendigo TAFE’s campus revitalisation project. A series of workshop meetings with the project engineer, builder, and architect ensured every detail was resolved before fabrication and installation.

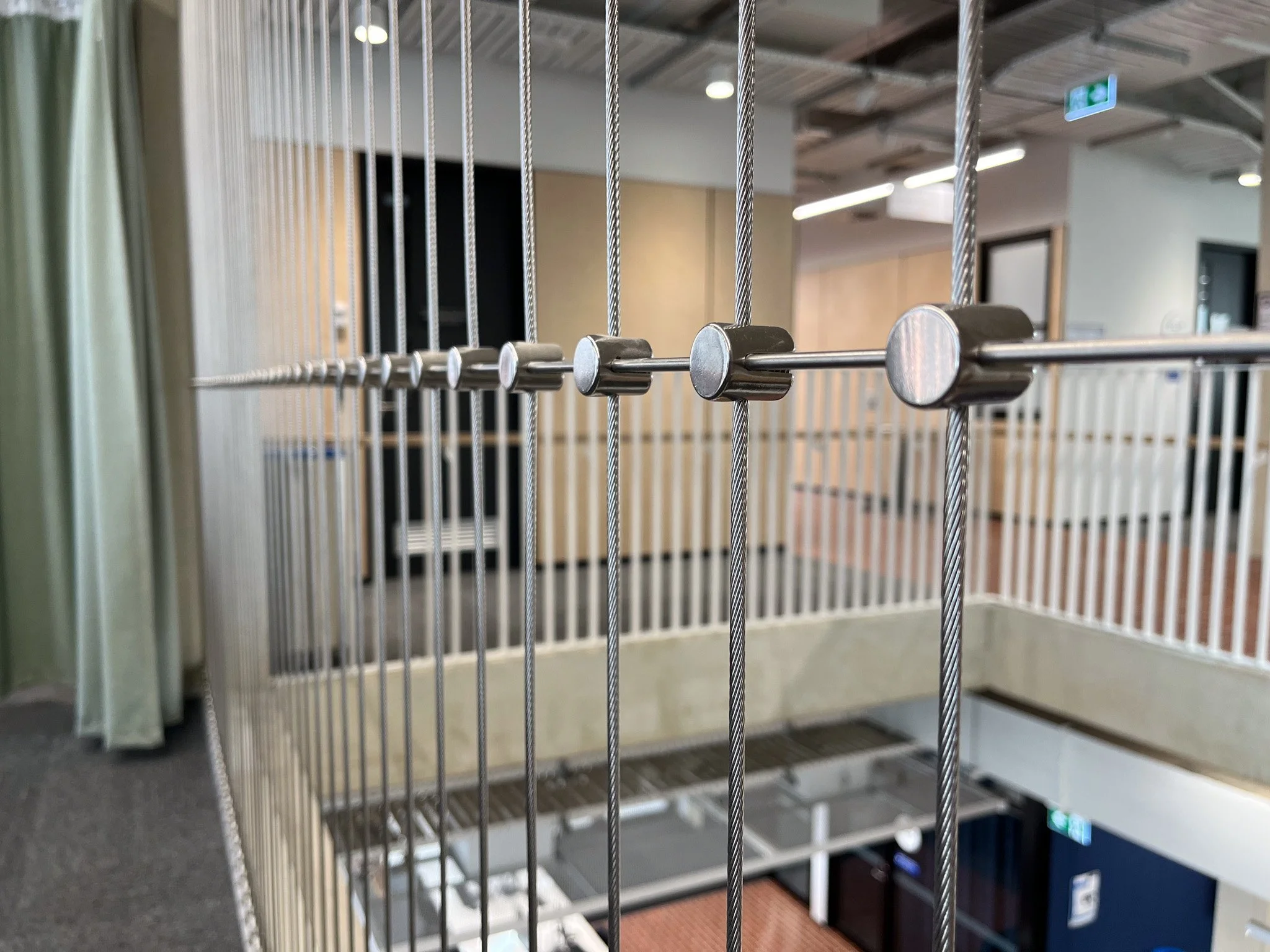

Our skilled metalworker fabricated and installed painted steel angles and bracketry, providing neat and accurate attachment points for the cables. All cables were manufactured using 4mm 1x19 hamma X stainless steel with industry-leading swage fittings from Arcus Wire Group.
The balustrades were installed to:
Deliver a compliant and durable fall protection system
Provide a visually clean and precise architectural detail

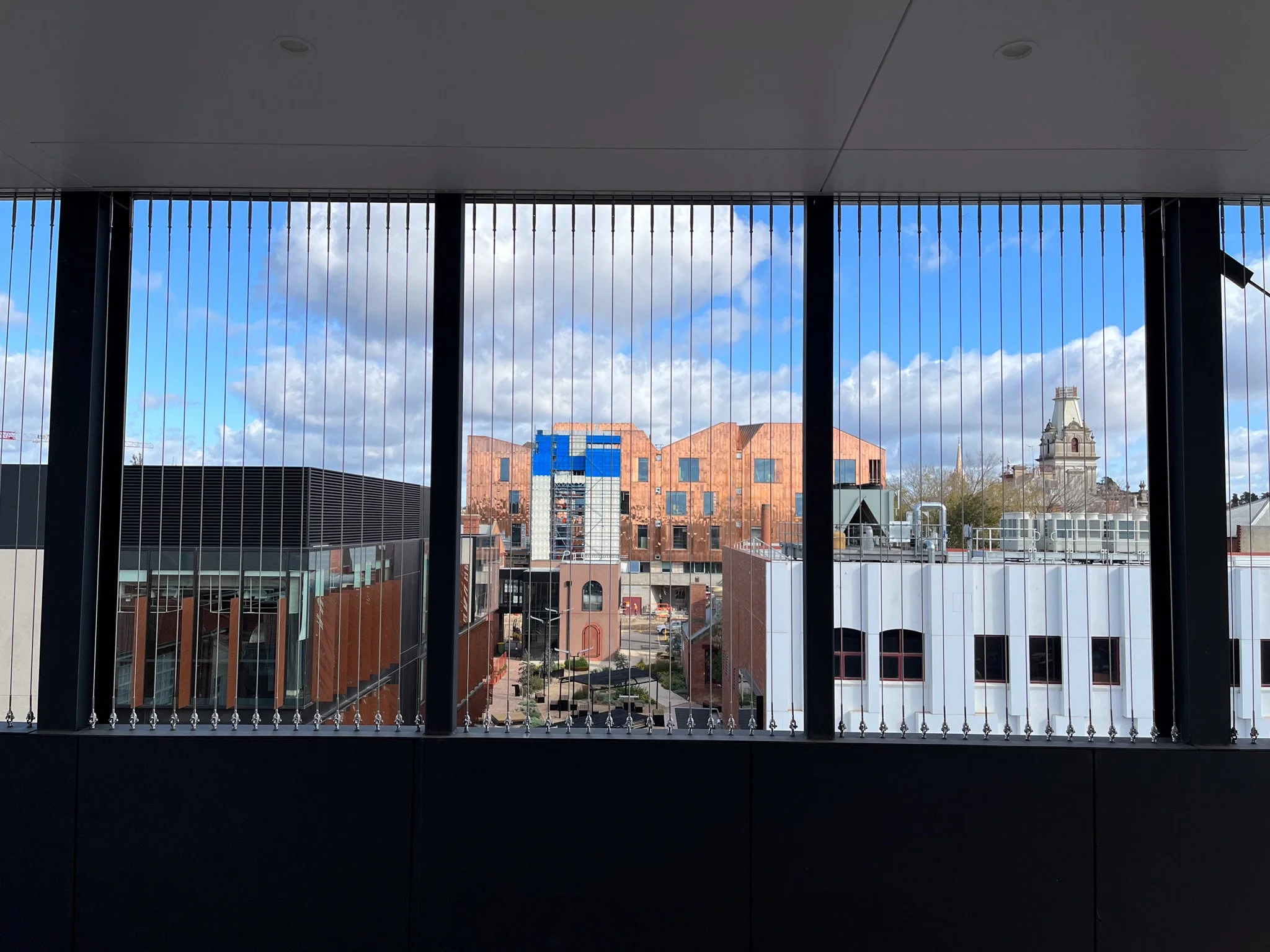

Showcase over 1,000 vertical stainless steel cables with consistent alignment
Support the architect’s design intent while meeting structural requirements
This project highlights Bespoke’s capacity to manage large-scale installations that require both engineering precision and architectural finish.
Building Materials
4.0mm 1x19 hamma X stainless steel balustrade cables
Industry-leading roll swage fittings from Arcus Wire Group
4.0mm GR316 stainless steel round bar cross-rails
4.0mm stainless steel cross clamps
Custom fabricated painted steel angles and bracketry
